This widget allows to display the Tree and it is similar to the CTreeView, but allows any layout and loading with the url.

• Allows multi level data load: static and dynamic (Ajax)
• Allows to use the any node template

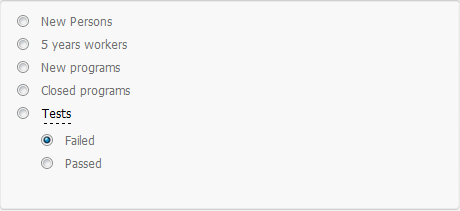

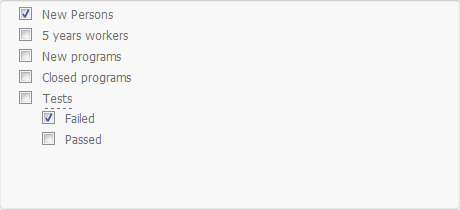

• Allows single selection and multi-selection
• Allows onClick and onLoad functionality
• Allows per node loading url (each node can loading from the own url)
• Allows easy design change

Requirements ¶

Yii 1.1.7

Usage ¶

To use the extension just unzip all of its contents to the /protected/widgets/ or to the root of your /protected and /images folders.

You could always tune the view of the tree with the tree.css

//Example of the dynamic initialization

$this->beginWidget('CTree', array(
    'Id'=>'TreeId',
	// All nodes would be open
	'openAll'=>false,

	// Allows multi selection
	'multi'=>true,

	// Sets the url for the JSON data
	'url' => $this->createUrl("/yourModule/controller/getTree/"),
	'width' => 200,
	'height' => 200,

	// Allows loading with ajax
	'ajaxLoad' => true,

	// Select the first node
	'firstSelect' => true
	));

$this->endWidget('CTree');

//You should return the serialized array in your controller/action/
	public function actionGetTree()
	{
		$result = null;

		if(!isset($_REQUEST['id']) )
		{
			$result = TreeManager::load(null);
		}
		elseif(($id = (float)$_REQUEST['id']) && ($id > 1))
		{
			$result = TreeManager::load($id);
		}

		if(!empty($result))
		{
			echo CJavaScript::jsonEncode($result);
		}
		else
		{
			echo "[]";
		}
	}


// on the client side you should get the such array for rendering
(you could easily check with the Firebug utility)

[{"nodeTitle":"Failed","nodeId":6,"hasChildren":false}, {"nodeTitle":"Passed","nodeId":7,"hasChildren":false}]


//Example of the static initialization

$this->beginWidget('CTree', array(
    'id'=>'newTree',
    // additional javascript options for the dialog plugin
    'openAll'=>false,
	'width' => 200,
	'height' => 400,
	'onLoad' => ' function () { alert("onLoad Function"); }',
	'firstSelect' => false,
	'multi' => true,
	'data' => array(
		array('nodeId' => rand(10000, 100000), 'nodeTitle' => 'Node1',
                    'selected' => true, 'nodeChildren' => array()),
		array('nodeId' => null, 'nodeTitle' => 'Node1', 'selected' => true,               'nodeChildren' => array()),
		array('nodeId' => null, 'nodeTitle' => 'Node2', 'selected' => false,              'nodeChildren' => array(
		array('nodeId' => rand(10000, 100000), 'nodeTitle' => 'Node2.1', 'selected' => false,              'nodeChildren' => array()),
		array('nodeId' => null, 'nodeTitle' => 'Node2.2', 'selected' => true,               'nodeChildren' => array(
                array('nodeId' => rand(10000, 100000), 'nodeTitle' => 'Node2.2.1', 'selected' => false,            'nodeChildren' => array()),
                array('nodeId' => null, 'nodeTitle' => 'Node2.2.2', 'selected' => true,                'nodeChildren' => array(
                          array('nodeId' => rand(10000, 100000), 'nodeTitle' => 'Node2.2.2.1', 'selected' => false,  'nodeChildren'=>array())
                ),
	     )
	   )
	)
     )
))));

$this->endWidget('CTree');

Change Log ¶

Version 1.2 (2012-02-06 release file) ¶

• added scroll: auto style
• fixed the single selection mode
• fixed some onclick issues
• fixed issue of the tree loading when the several trees placed on the single page
• fixed design issues (added images dir to the release file)

##Resources

 * [Project page] [https://code.google.com/p/moco-tree/](https://code.google.com/p/moco-tree/ "https://code.google.com/p/moco-tree/")
 * [Owner is] [http://tmx.com.ua/](http://tmx.com.ua/ "http://tmx.com.ua/")
 * [Developed by] Sysprog of [http://martis-ua.com/](http://martis-ua.com/ "http://martis-ua.com/")
